Electric kit for 10 candle arch with grommet and disc by SEIFFEN.COM
Prices excl. VAT, excise duties, customs, excl. shipping
Fastest delivery time: 3 - 4 days at your place in UK

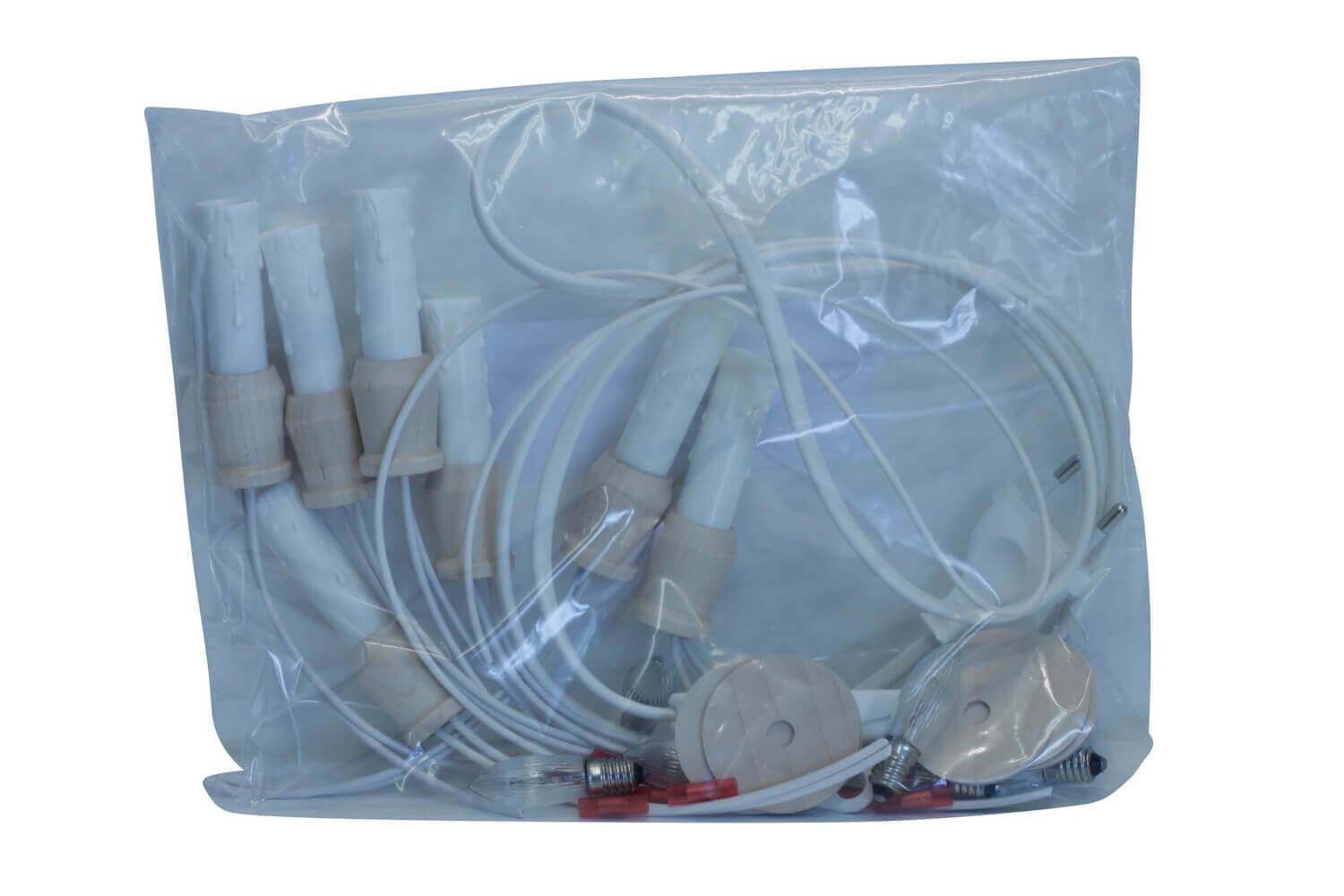

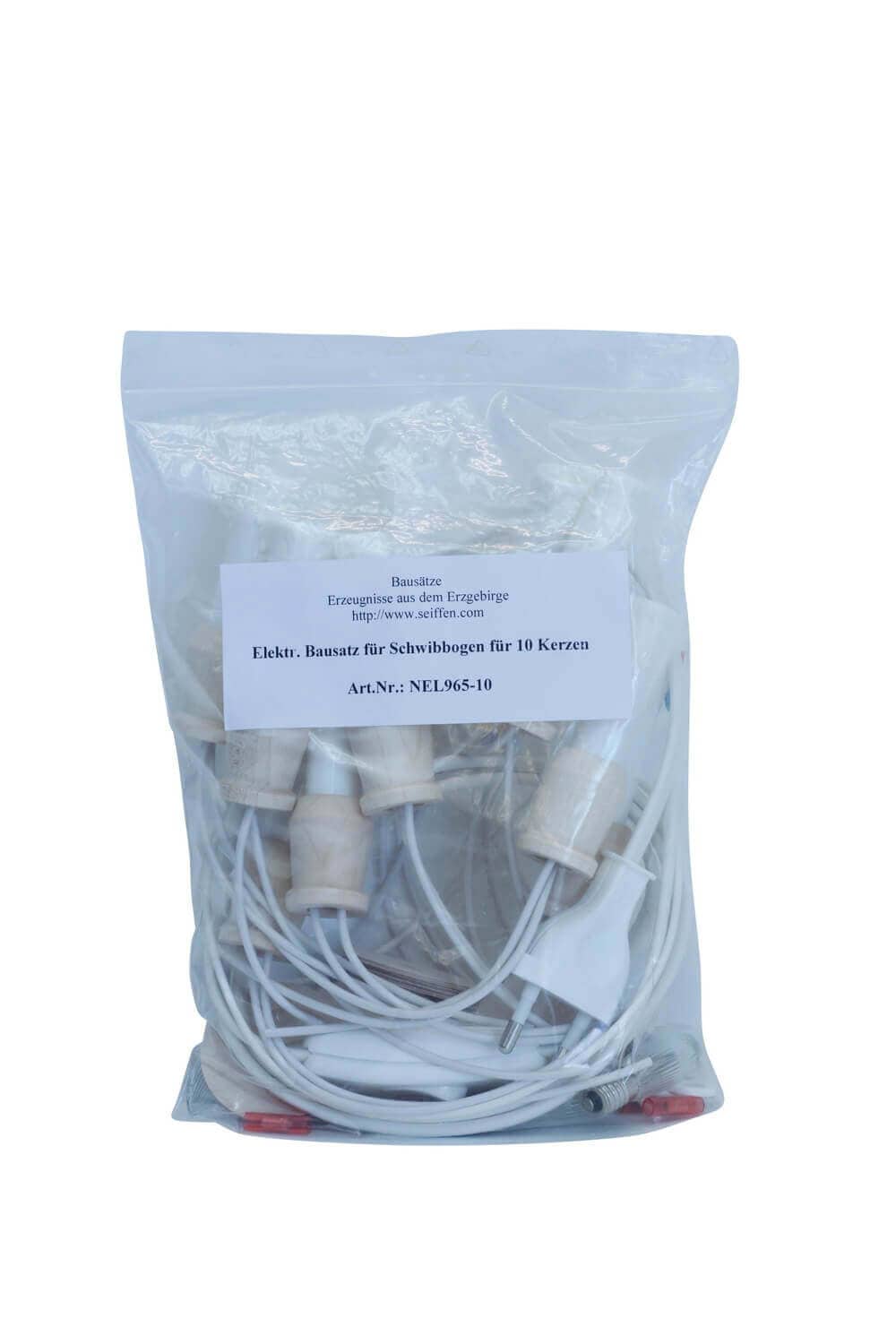

Kit for 10 light arch, 10 corrugated candles 23 volt, 1 connection cable with switch, 1 lister terminal, 1 strain relief, 10 candle sleeves completely assembled with approx. 12 cm long leads, 10 crimp connectors, 10 wooden washers, 1 lead 60 cm
Instructions for the component set of a Schwibbogen in series connection
- 10 candles is with 23 V
The main part of the component set are the candle holders,which consists of socket,sleeve,grommet (made of wood),2-fold insulated wires with ca.26 cm long contacts and the candle.
This candle socket is then attached to the intended locations of the existing arc. The two insulated wires (outer-diameter strand 2.5 mm) are cut in half and then cut to the appropriate length. Then the ends must be stripped and connected in series with the wires of the other candle sockets. This is done either by means of parallel connectors (is included in the component set) or by soldering.
The connection of the last two free wires is done with a luster terminal, which is hidden in the base of the Schwibbogen. In doing so, one of the two wires must be connected with the enclosed lead of about. 60cm from one side of the Schwibbogen to the Lüsterklemme be extended. Furthermore, the connecting cable with switch is again connected to the Lüsterklemme.The candles are screwed in and already the Schwibbogen is electrically installed.
It should be noted, that when soldering the wires, the solder joint must be stripped with heat shrink tubing (is not included in the component set).
In addition, when using LED candles to pay attention, that then only LED candles must be used, since LED candles are not compatible with other candles.
Safety note:
Electrical installations should only be carried out by people with the necessary electrotechnical expertise. Therefore, on the part of SEIFFEN.COM by Nestler no liability is assumed for the installation and use of the component set.
